How to Install and Replace Fire Sprinkler Head Guards?

The fire sprinkler system is integral to protecting buildings and their occupants. One central element of these systems is a fire sprinkler head that discharges water during a fire. Fire sprinkler head guards protect these heads from damage. This article gives step-by-step instructions on how to install and replace them.

What are fire sprinkler head guards?

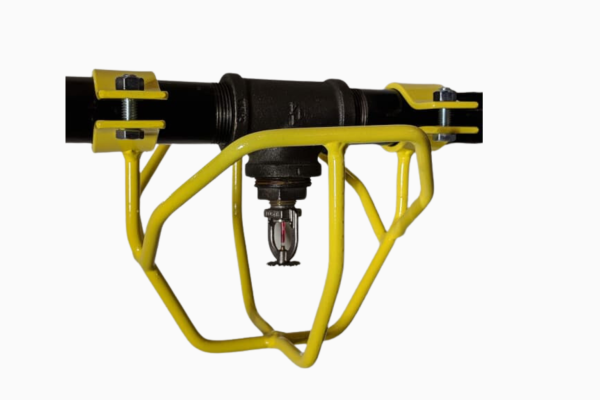

Fire sprinkler head guards refer to protective covers or cages designed to prevent mechanical harm with regard to sprinklers.

They are made of metal, which is enclosed around the sprinklers to shield them against accidental bumps, knocks, or tampering.

These guards become important in facilities that may be susceptible to accidental impact on the extinguishers, such as warehouses, schools, gyms, and industrial spaces.

Tools and Materials Needed For Installing Sprinkler Head Guards

Before installing Sprinkler Head Guards or replacing them, gather the following tools and materials:

• Fire sprinkler head guard
• Screwdriver or wrench (depending on the guard's design)
• Ladder (if the sprinkler head is located at a certain height)
• Safety goggles
• Gloves

Safety Precautions

• Turn Off the Water Supply: Before working on the sprinkler system, ensure the water supply is turned off to prevent accidental water discharge.
• Notify Occupants: Inform building occupants about the maintenance work to avoid any unnecessary alarm or confusion.
• Wear safety gear: Use safety goggles and gloves to protect yourself from potential hazards.

How do I install sprinkler head guards?

Step 1: Find the Right Guard

They come in various shapes and sizes. You should have the right screen for your sprinkler head size or type. Confirm with the manufacturer if it is compatible with yours.

Step 2: Get Started in the Area

When You Work Up High: If your sprinkler head is high above everything else, securely set up your ladder. Make sure there are no obstructions near its position.

Step 3: Add the Guard

• Set Position for the Guard: Hold it near, but do not touch or obstruct the functioning of the sprinkler head.
• Securely Attach the Guard: Fix them using screws or clamps provided with a guard until firm but avoid over-tightening to prevent damage to the sprinkler head, then tighten with a screwdriver or wrench.

Step 4: Reviewing the Installation

Recheck it several times after attaching such protective screens so that they do not interfere with the work of these fire extinguisher heads. Still, water should flow freely while protecting against flame outbreaks.

How Do I Replace the Fire Sprinkler Head Guards?

Step 1: Cut Off The Water Supply

During the installation process, start by cutting off the water supply for the sprinkler system. This is done to prevent any accidental release of water during replacement.

Step 2: Discard the Old Guard

• Ease the Screws or Clamps: Remove old guard clamps or screws using a screwdriver or spanner.
• Take Carefully Away The Guard: When loose, carefully remove the guard from around the sprinkler head, taking care not to damage it.

Step 3: Look at the Sprinkler Head

A new guard can be installed after the damaged guards are examined. If the sprinkler head is damaged, you may have to replace it before installing a new one.

Step 4: Place in a New Guard

• Put on a Fresh Guard: As with the previous step, position the new guard on top of the sprinkler head.
• Attach a New Guard. Fasten screws or clamps so that you can hold onto this new protector firmly, and make sure it is not too tight to such an extent—strong enough but not over-tightened.

Step 5: Get Back Water Supply

Once your new guard is tightly secured in its place in the sprinklers, the water supply will be restored. Check for leaks in your system.

Step 6: Test the New System

It is also a good idea to test the sprinkler system once you have replaced the guard and restored the water supply to ensure everything works as it should. However, if you are uncertain about how this test is done, you should consult an expert.

Tips for Maintenance

• Regular Inspection: At all times, keep checking your fire sprinkler head guards so that they do not get damaged or broken.
• Clear Areas: Ensure no obstructions around sprinkler heads and guards.
• Professional Servicing: Schedule regular maintenance and inspections with a professional to ensure the entire sprinkler system, including the guards, is in good working order.

The Bottom Line

The installation of a fire sprinkler system head guard is easy; nevertheless, it will increase the durability and efficacy of your fire safety system. Therefore, you need to follow these suggestions so that physical damage cannot easily destroy your sprinkler heads while maintaining a high level of protection for your fire-fighting equipment.
